| Attenuation Ratio | x1000 |
| Accuracy | VDC ±2 % [+5 kV]±3 % [+5 kV-8 kV]VAC ±3 % @ 1 kHz |
| Input Impedance | 100 MΩ, 3 pF |
| Bandwidth | 40 MHz (-3 dB) |
| Rise Time | 9 ns |
| Cable Length | 2.0 m |
| Compensation Range | 10..30 pF |
| Max. Input Voltage | DC 8 kV, AC 6 kVrms, PEAK 16 kV |
| Dimensions (L x W x H) | 220 mm x 50 mm x 50 mm |
| IEC61010-031: 2015 | CAT I Pollution Degree 2 |
| Datasheet | No Disponible |
| Order number | 15008 |

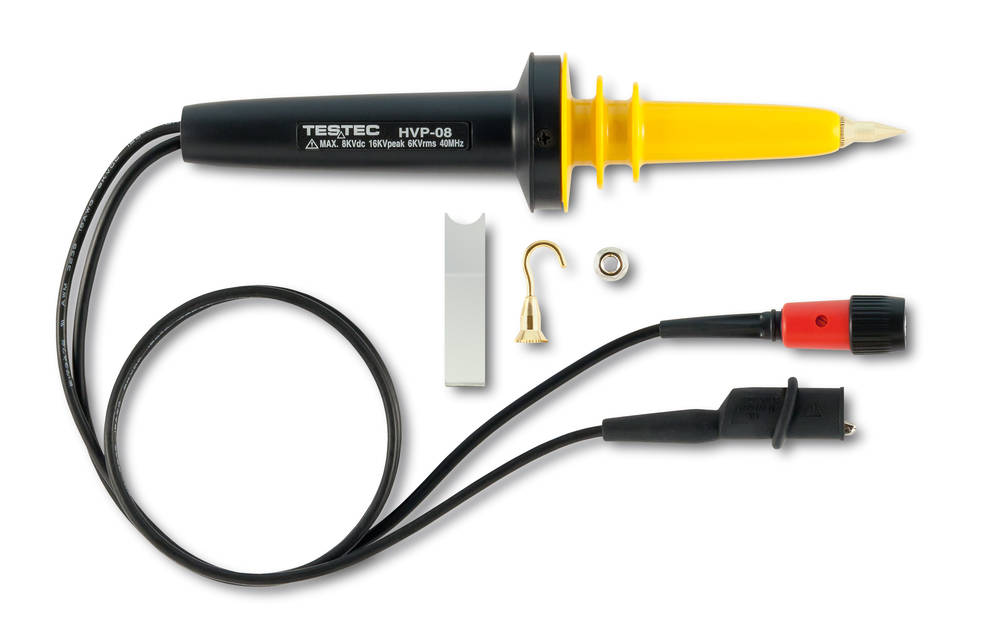

Testec TT-HVP 08 | 1000:1
160,97 € (IVA Excl.)
Sin existencias
Información adicional
| Marca |
|---|
